High Stability PTC Water Heating Element , Ceramic Water Heater Eco Friendly
How to Order
In order to help you get the exact model, please offer the following necessary info.:
1. application of the PTC heater:_________
2. working environment of PTC heater:________
3. the range of operation temperature:___°c to ___°c
*4. dimension and the drawing of the heater
*5. dimension: _____mm* _____mm* _____mm
*6. power: _____W
*7. voltage: _____V
*8. wind speed: _____m/s
*9. insulated or not insulated
* Fill " * " items necessarily.
Applications:
| Application | Foot tub, home appliance industry of electric appliances
|
The PTC water heater can be widely applied to electric appliances,like Foot tub, home appliance,etc.
Specifications:
| | Operating voltage | Insulation voltage | Surface temperature | Rated power |
| Embedded liquid heater | 6V-240V | > 3750V | 100 ℃ ~ 290 ℃ | 20W ~ 800W |
| Fluid liquid heater | 6V-240V | > 3750V | 80 ℃ ~ 290 ℃ | 20W ~ 2000W |
Description:

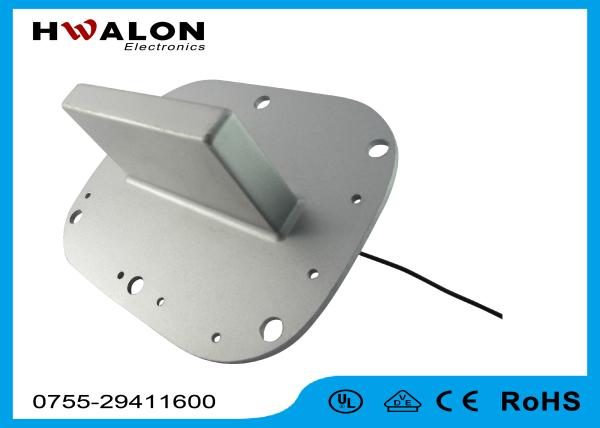

1. submerged liquid heater application design
This is a submerged liquid heating (T-type PTC heater), the heater probe into the liquid container is heated, the liquid to obtain a constant temperature. PTC element used as the heat source, with fast heating, heat thermostat, self-adjusting power, heat conversion rate, anti-scale ability, even if no damage and so dry. It is widely used in various types of electric appliances in the home appliance industry.
Embedded liquid heater technology parameters:
Operating voltage: 6V-240V
Insulation voltage:> 3750V, through special insulation treatment, safe and reliable
Surface temperature: 100 ℃ ~ 290 ℃
Rated power: 20W ~ 800W

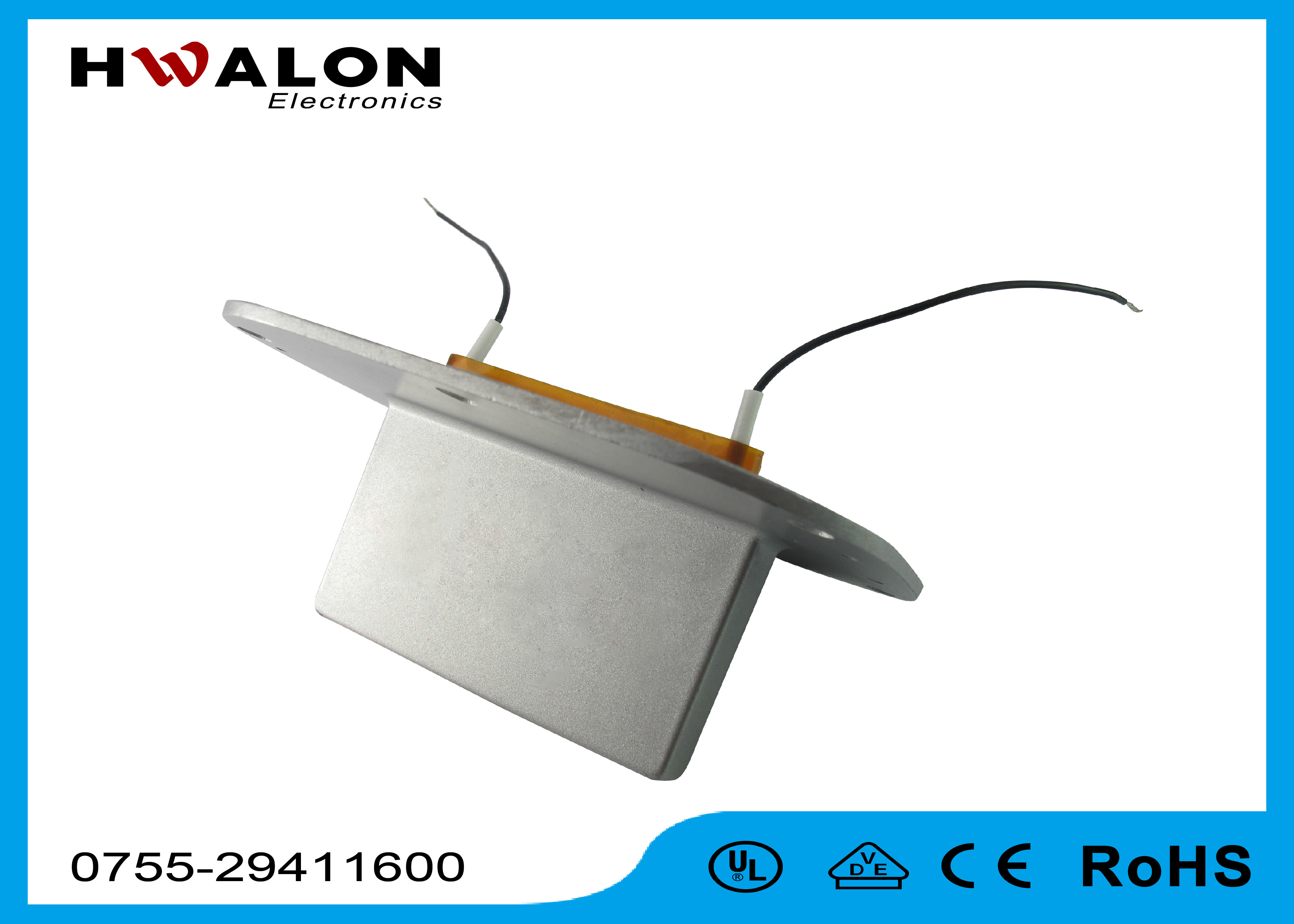

2. fluid liquid heater application design
This is a fluid liquid heater (also called foot tub with a tubular heater PTC), our company is for the foot bath product launch another product, mainly used in high-end to the cycle of heating foot bath products above, with the use of easy installation, long life, easily damaged and other traditional heating materials (for example: quartz glass) unmatched features. Further dimensions can be customized to customer's actual installation size, product quality in a leading position in the peer.
Fluid liquid heater technical parameters:
Operating voltage: 6V-240V
Insulation voltage:> 3750V, through special insulation treatment, safe and reliable
Surface temperature: 80 ℃ ~ 290 ℃
Rated power: 20W ~ 2000W
Competitive Advantage:
1. Leak-proof, excellent insulating property
2. High power
3. Safety and reliability
4. OEM for your design
5. Stable performance
Foot Bath Item PTC Water Heater PTC Heating Element High Stability & Quality
